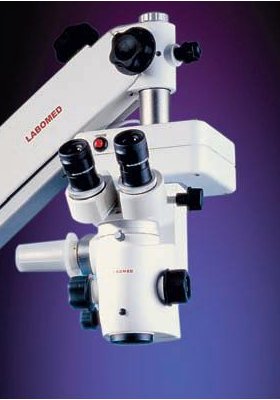

PRIMA OPH OPHTHALMIC OPERATING SURGICAL MICROSCOPE

No matter how simple or complex the application, each PRIMA configuration excels in offering the greatest value to physicians and specialists alike. With a range of high-performance motorized as well as ergonomic accessories that are built to last, your PRIMA operating microscope can be enhanced to meet all of your desires as well as your budget.

PRIMA OPH configured with XYZ motorized movement operated through a comfortable foot control, a very effective red-reflex co-axial illumination and a 150W halogen light source makes it ideal for cataract and retinal surgeries.

With a powerful selection of digital and analog cameras available for the PRIMA series, documenting your observations, archiving records, and sharing information with colleagues never felt so simple.

With the use of table, wall, and ceiling mounts, our line-up of microscopes can be adapted to a platform that best fits your functional space requirements. And our line doesn't stop at what you see here. LABOMED carries a diverse set of tools to further compliment your medical diagnostic imaging needs.

Microscope Specifications:

* Stand: Prima OPH microscope stand with red reflex co-axial illumination system
* Apochromatic Magnichanger: 5 step magnichanger with magnification 0.4x, 0.63x, 1.0x, 1.6x, 2.5x
* Viewing Bodies: 45º Inclined binocular tubes, f = 170 mm, IPD range 55-75mm
* Eyepieces: Wide field adjustable eyepiece 10x / FN 16mm with eye guards
* Objective: Objective lens f = 200mm, motorized fine focus
* Microscope carriers: Foot operated X & Y coupling and Z-axis motorized focus controls
* Illumination: red reflex co-axial illumination
* Light source: 15V / 150W halogen twin lamp
* Input: AC 110V or 220V selectable 50/60Hz
* Built-in filters: Filter holder with Cobalt blue and Green filter
* Vertical movement of arm: 600 mm
* Fuse: Quick acting fuse 1.0 Amp
* Castor wheels with locking system
* Standard Accessories: Dust cover for microscope observation head and illumination box, set of sterilizable rubber caps
