Ci Clinical Microscope

To meet the demands of clinical laboratory specialists and researchers, Nikon has reviewed all aspects of microscope usability to develop the Eclipse Ci series of microscopes, which combine superior functionality with operational ease. The Ci is designed to ensure nature posture during viewing of images, sample changing and image capture. Bright, eco-friendly LED illumination reduces the need for frequent lamp replacement*. A variety of accessories are available that support various imaging techniques.

Clinical and laboratory microscope featuring LED illumination*, providing stress free operation for routine use

*A Halogen model (Ci-S) is also available


Motorized model with LED illumination

Equipped with motorized nosepiece and automatic intensity recall, the Ci-E is ideal for applications that require frequent magnification switching.

Equipped with LCD and Light Intensity Management (LIM) function based on ECLIPSE Ci-L which is designed with a focus on ease-of-use as well as the health and working styles of people involved in research.

Manual model with LED illumination

Suitable for applications requiring a traditional halogen light source.

Manual model with halogen illumination


Motorized magnification switching

Magnification can be easily changed during observation with the touch of a button on the Eclipse Ci-E microscope body. The buttons can also be programmed for specific objective lenses for easy switching between specific pairs. User-defined light intensity for each magnification is automatically saved and reproduced when magnification is changed. The remote control pad or the touch-screen  DS-L4 camera control tablet can also be used to easily change magnifications.

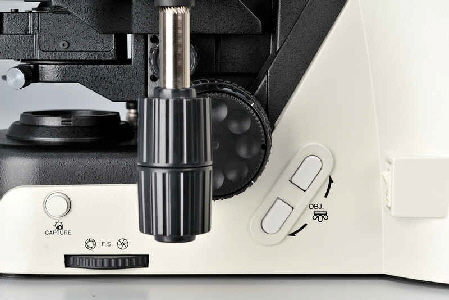

Nosepiece rotation buttons

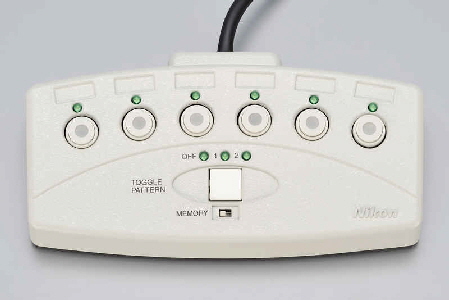

Remote control pad

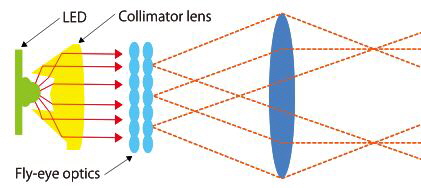

The Eco-illumination* is a low-power-consuming, eco-friendly illumination system that produces uniform brightness and reduces the cost and effort of lamp replacement, thanks to its 60,000 hour, high-luminescent LED. By combining a collimator lens, fly-eye optics and LED illumination, bright and edge-to-edge uniform images can be obtained even at high magnifications. The LED illuminator features low-heat generation and provides the same color temperature at every magnification

Bright and uniform ECO-illumination

* Halogen model (Ci-S) is also available

Enhanced operational ease

Observation with a natural posture

Using the ergonomic binocular tube, which features an eyepiece that can be inclined from 10° to 30°and extended up to 40 mm, the microscope can be adjusted for natural posture. The eyelevel riser lifts the eyepiece tube in 25 mm increments (up to 100 mm*) and can easily be adapted to suit users with different eye-point heights.

* Up to 50 mm with ergonomic binocular tube.


Ergonomic binocular tube

Eyelevel riser

User-friendly stage operation

With the addition of a nosepiece spacer, the stage height can be lowered 20 mm from the standard position, reducing strain during frequent specimen change. The stage handle height can also be changed to ensure a comfortable hand position. The stage height can be locked using the refocusing knob, allowing quick refocusing after specimen changes. The stage is coated with a high-durability, scratch-resistant ceramic coating.


One simple click of the image capture button on the microscope base during observation enables the Digital Sight camera to capture the specimen image. Camera control software for tablet PC NIS-Elements  is equipped with a scene mode that can automatically set the optimum shooting conditions for each observation method. Since it has a network function, you can share images with a remote PC.

Effortless image capturing

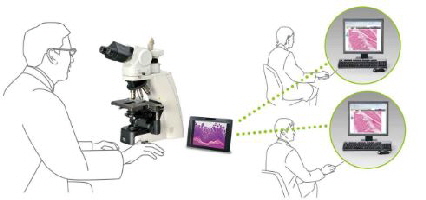

Digtal Pathology via network

Image capture button

NIS-Elements L camera control software for tablet PC

Ci-Simple pol1
Ci-Simple pol2

Versatile observation techniques

Phase Contrast

High-contrast images with neutral background coloration regardless of the magnification range can be captured. This observation technique is suitable for observation of unstained structures.

Simple polarizing

Ideal for observing bi-refringent samples such as collagen, amyloids and crystals.

* Two types of analyzer are available: intermediate tube type and nosepiece slider type.

Sensitive color polarizing

Enables Identification of uric acid crystals by changes in the interference color. This technique is ideal for gout and pseudo-gout tests.

* Two types of analyzer are available: intermediate tube type and nosepiece slider type.


Compact epi-fluorescence attachments that utilize noise terminating mechanisms allow weakly fluorescing specimens to be captured with great clarity and brightness. Both CI-FL epi-fluorescence attachment (incorporates up to 4 filter cubes) and D-FL epi-fluorescence attachment (incorporates up to 6 filter cubes) allow easy switching of filter cubes. High-optical-performance objective lenses for epi-fluorescence imaging, including the CFI Plan Apochromat Lambda series and the CFI Plan Fluor series, are available.


Enables clear observation of blood or minute structures such as flagella. Dry- and oil-type condensers are available. An expander lens is utilized for brighter imaging.

Since 1931, Lukas Microscope has been a full service microscope Sales & Service dealer. With New Microscopes, Used Microscopes, Digital Cameras, Camera Adapters, Imaging Software, Video Systems, and Accessories for most brands, and by utilizing the best components of our various suppliers, we can assemble the best system to meet your needs.

If you need repair or PM service, we have factory trained technicians to service your microscopes We service most brands of microscopes including Nikon, Zeiss, Olympus, Leica, Meiji, American Optical, and Bausch & Lomb.


Enjoy enhanced efficiency during observations

Status Display for easy confirmation at a glance

Quickly and easily check magnification and brightness settings using the display at the base of the microscope without changing your observation posture.


1ECO mode: ON
2 LIM function: ON
3 Objective name
4 Magnification
5 Brightness state

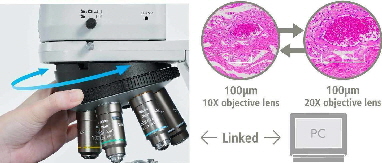

Turning the nosepiece automatically adjusts the scale bar

The scale bar on the PC display changes automatically to match the magnification level, eliminating the need to set the scale manually.

*Sold separately: Software (NIS-Elements D / BR / AR), Nikon recommended camera required
