LMS-4K Camera Specifications:

  • Live stream to a PC or Tablet.
  • Direct output via HDMI to HD or UHD Screen for viewing live images.
  • USB3 Camera,  USB Mouse and SD Card Slot.
  • 1/1.8” (5.57x4.13mm) 4K Sony Exmor IMX334(C) sensor.
  • High light sensitivity, 505mv @ 1/30s
  • Pixel size 2.0x2.0 µm
  • 60 frames per second at 3840 x 2160 HDMI.
  • Binning 1x1
  • Image capture (8mp) to SD Card (card is included).
  • Camera control panel for exposure, gain, white balance, color, sharpness and noise control.
  • Includes on-screen monitor toolbar for measuring, mirror, comparison, zoom, freeze, cross & browser when using mouse control.
  • C-mount connection to your microscope.
  • USB capture control for Windows.
  • Operating System: Windows XP, Vista, 7, 8, 10 (32 & 64 bit) Mac OS 10.8+, Linux kernel 3.13+
  • Memory: 4GB or greater.
  • Size & Weight: 3.87" x 2.56" x 3.07", 1lb.
  • Includes: Camera, Software, Power Adapter 100~240V, HDMI Cable, SD Card, USB Mouse, WIFI Adapter.
  • Monitor not included. The highest quality images are achieved when using a 4k monitor.

PC Software Functions

Windows:
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping

Mac:
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

The LMS-4K is a powerful new UHD microscope camera that produces high-definition images of amazing clarity. This camera uses a c-mount interface and is compatible with any brand microscope with the appropriate c-mount adapter.

The LMS-4K offers multiple output methods, including HDMI to any monitor (4K not required). When using the camera in HDMI mode, on-board software allows you to control the camera's settings and built-in features with a mouse. Adjust the exposure, brightness, and more. The software also allows for on-screen measurement, picture in picture, and image comparison. You can also capture images/videos to a removable SD card..
Output WiFi to an android, iOS device, or computer. Software is provided for use with a computer. A FREE app can be downloaded for andriod or iOS device use.

The camera can output directly to a PC via USB cable or by using WiFi output. The included software has multiple free features including measurements, stitching, extended depth of focus, time-lapse, and more!

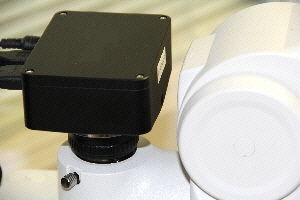

4k Cam

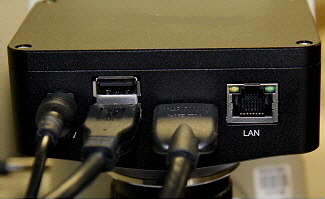

4k Cam2
